Configuring Device Streams

EMS supports remote configuration and monitoring of Makito streams and encoders. To configure device streams:

  1. On the Devices page, move the cursor over the status icon of the device you wish to configure (Active or Idle).

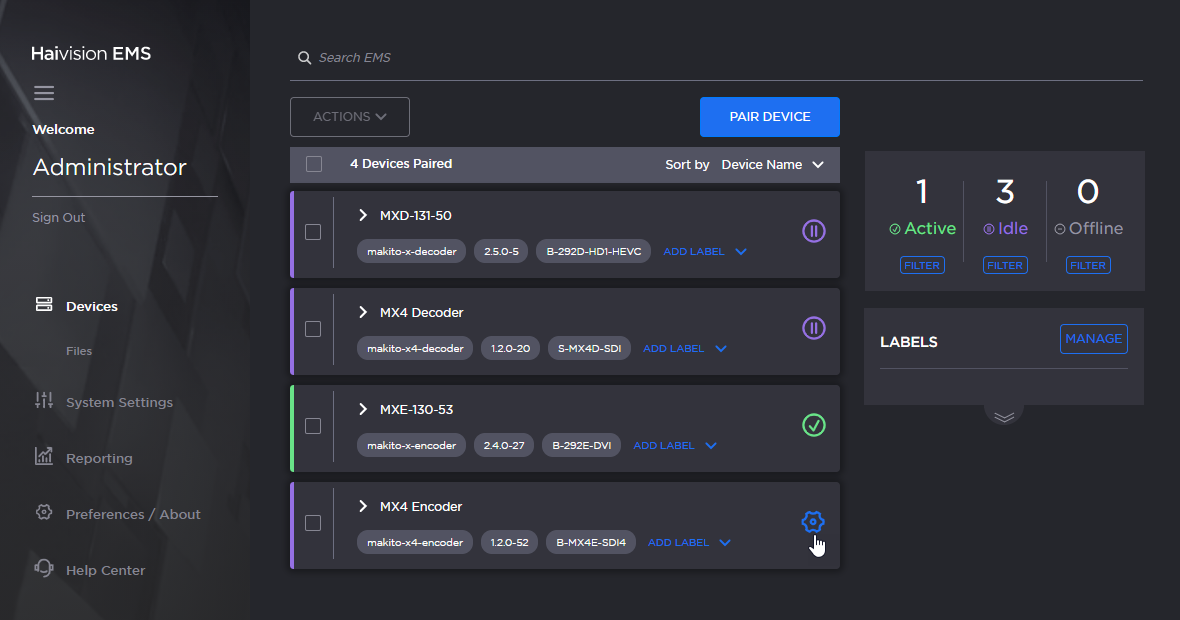

    Stream Configuration Icon
  2. Click the

    icon. The stream configuration pane opens.

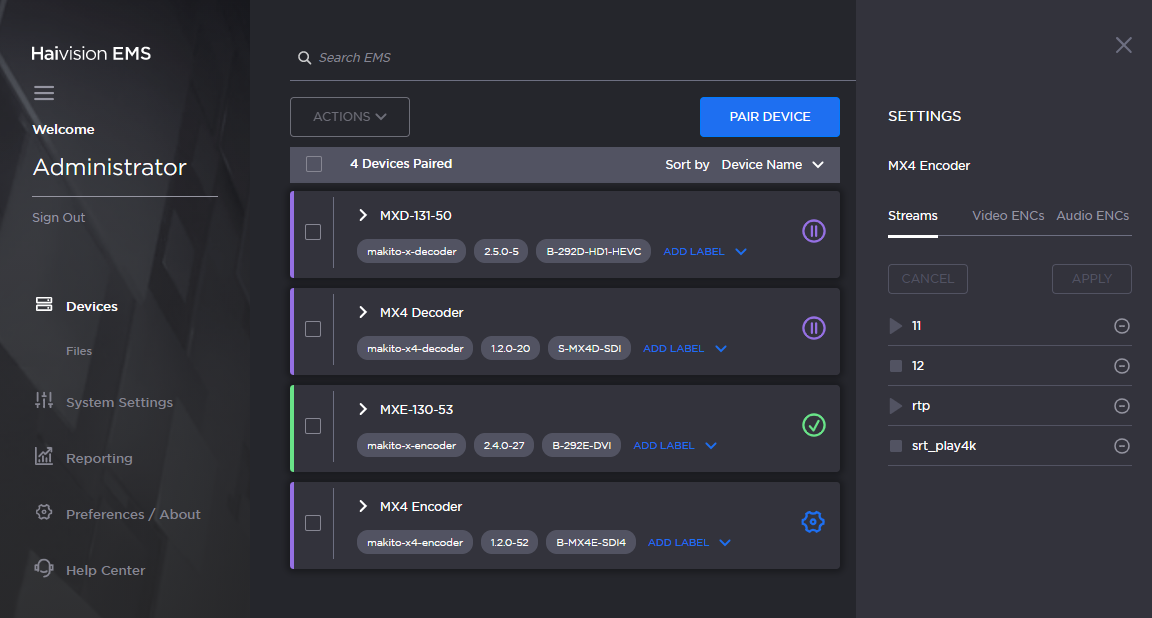

    Stream Settings Pane


    Hovering the cursor over a configuration name reveals additional details. See the screenshot below for an example:

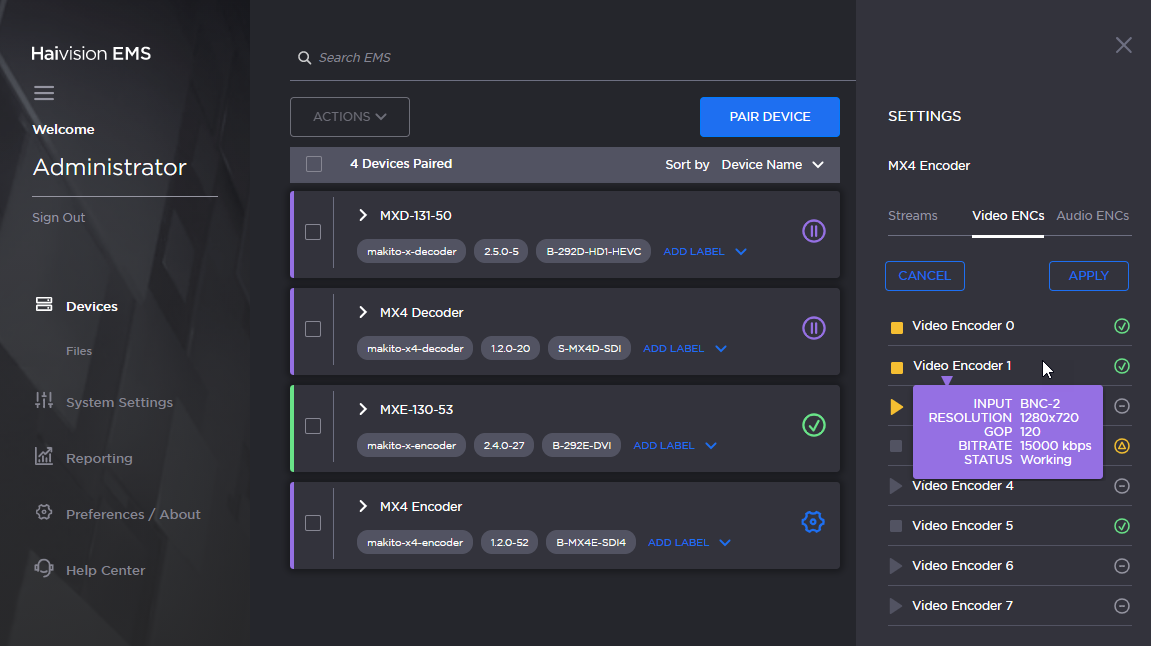

    Video ENC Stream Details

  3. Click the action icons to start or stop streams, video and audio encoders or decoders.

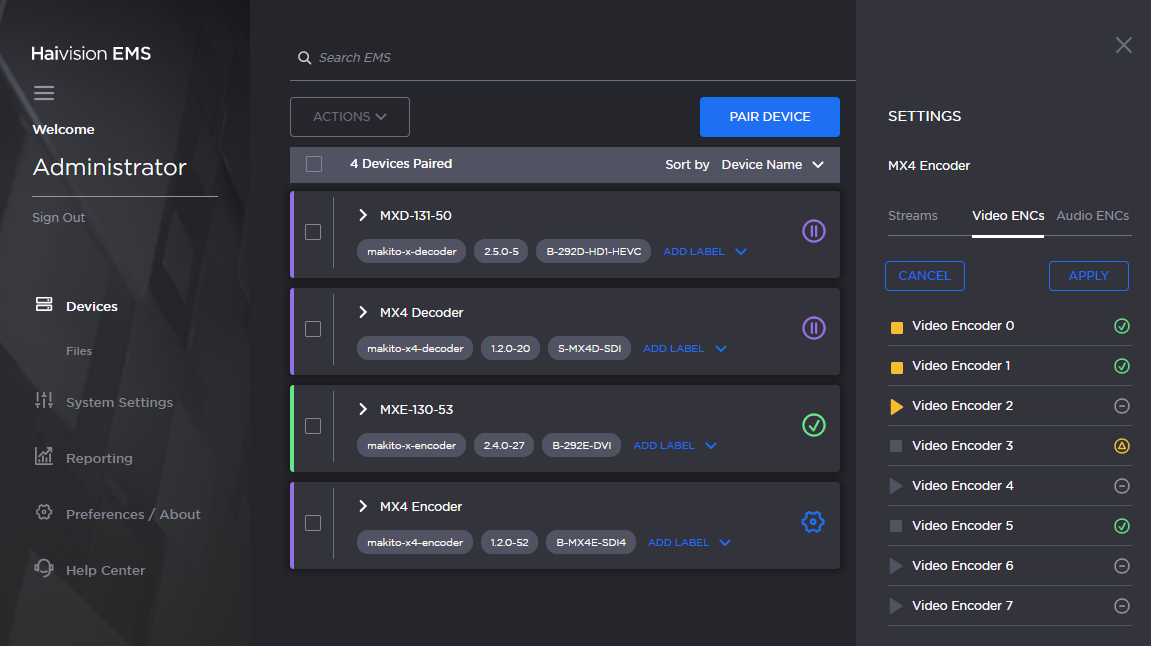

    Video ENC Icons
  4. Click Apply.

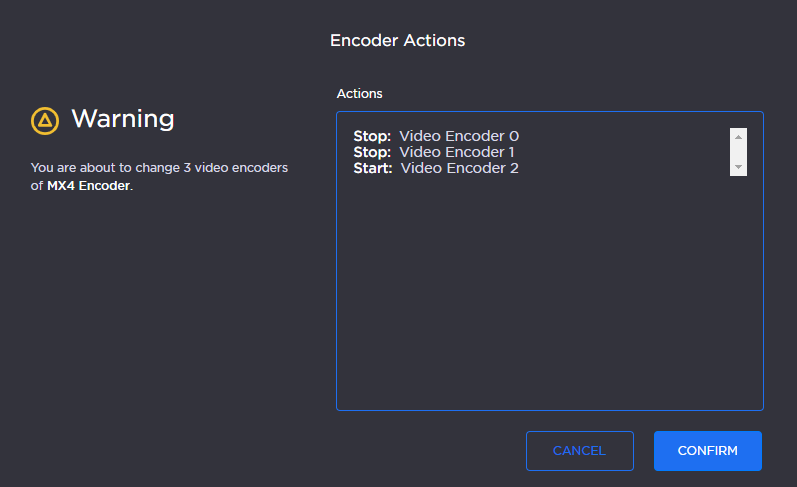

    Encoder Actions Confirmation
  5. Ensure that the correct actions are selected and click Confirm.
