Configuring Device Streams

EMS supports remote configuration and monitoring of Makito streams and encoders. To configure device streams:

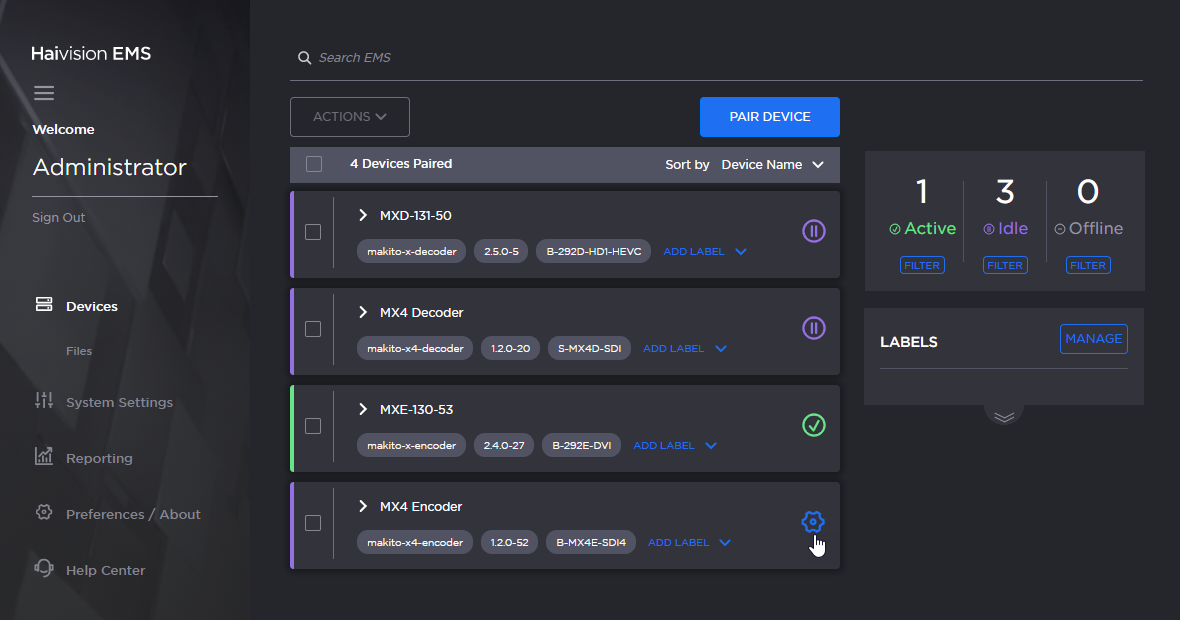

1. On the Devices page, move the cursor over the status icon of the device you wish to configure (Active or Idle).




2. Click the

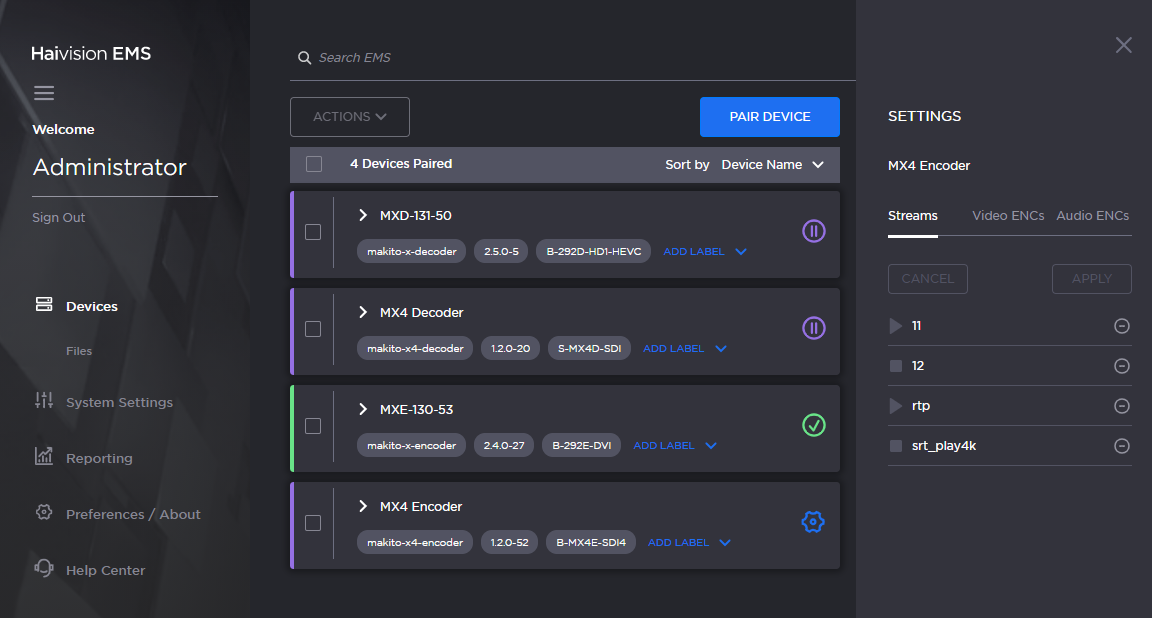

   icon. The stream configuration pane opens.






   Tip

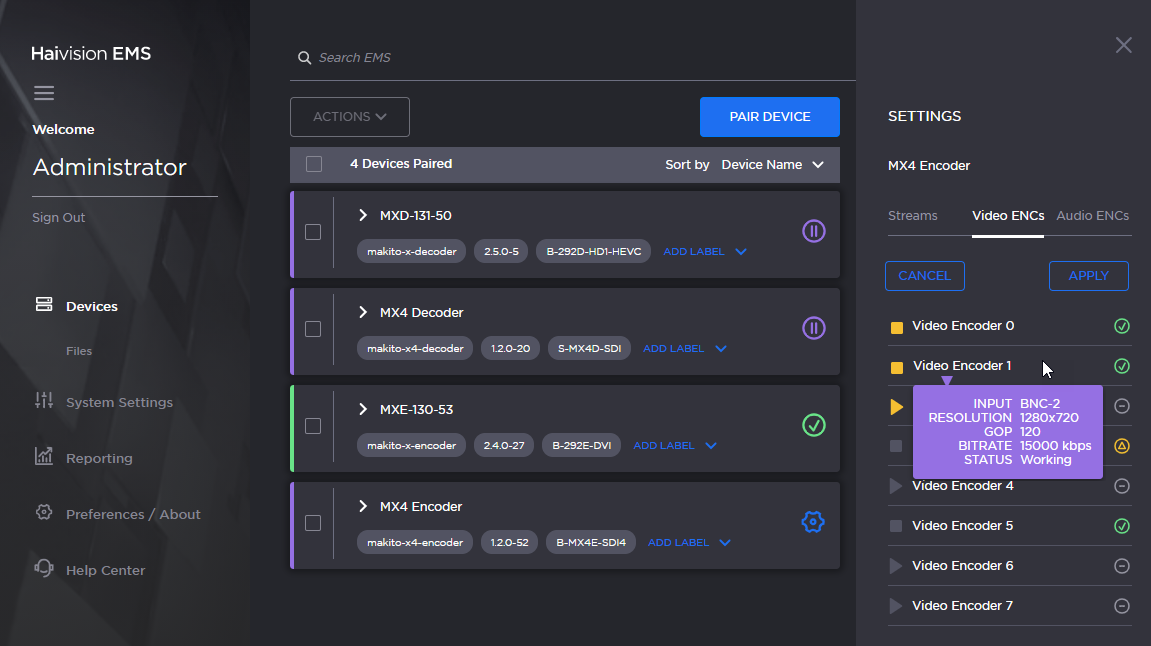

   Hovering the cursor over a configuration name reveals additional details. See the screenshot below for an example:

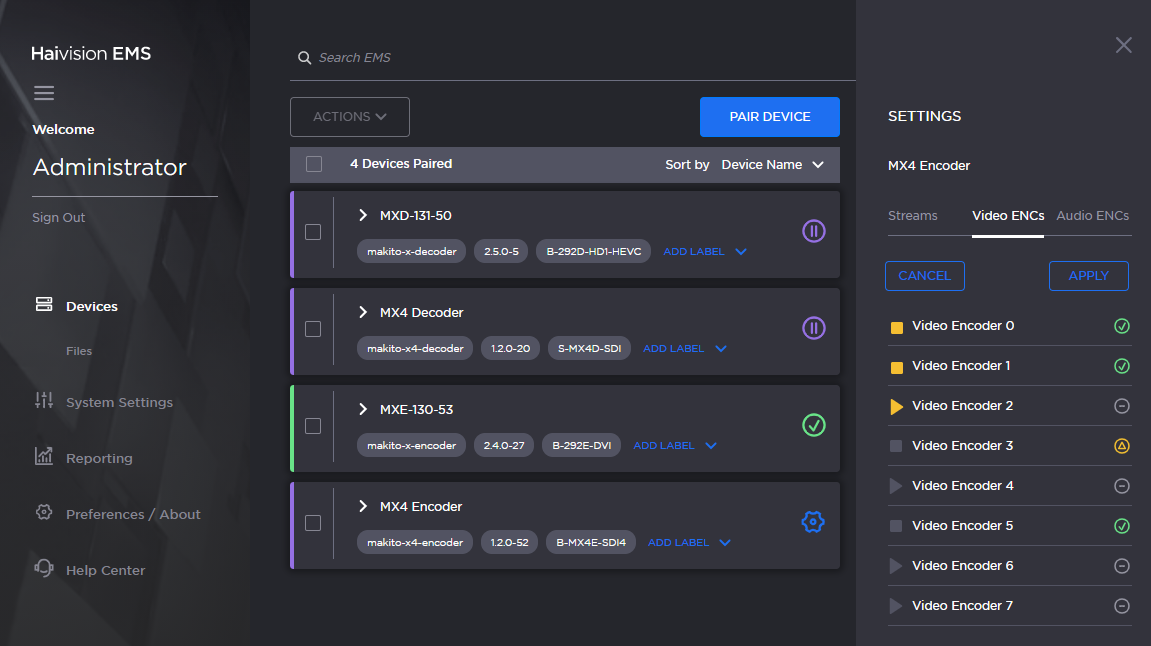

3. Click the action icons to start or stop streams, video and audio encoders or decoders.




4. Click Apply.

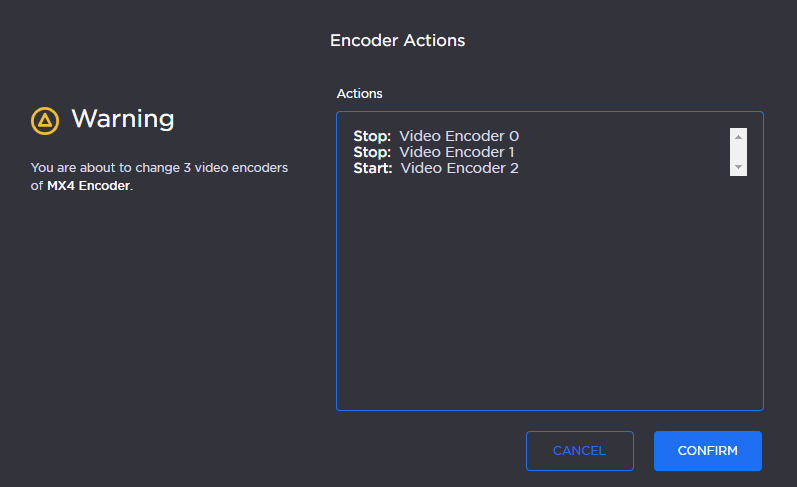

5. Ensure that the correct actions are selected and click Confirm.
