You can import the unit configuration via the unit panel, web interface, or a USB flash drive.
Note
You can also import the configuration from Manager (v3.3.0 and higher).
Unit Panel
From the Home menu, tap >> Configuration > Import from file.
Select the .awj file to be imported from the microSD card or USB flash drive.
Web Interface

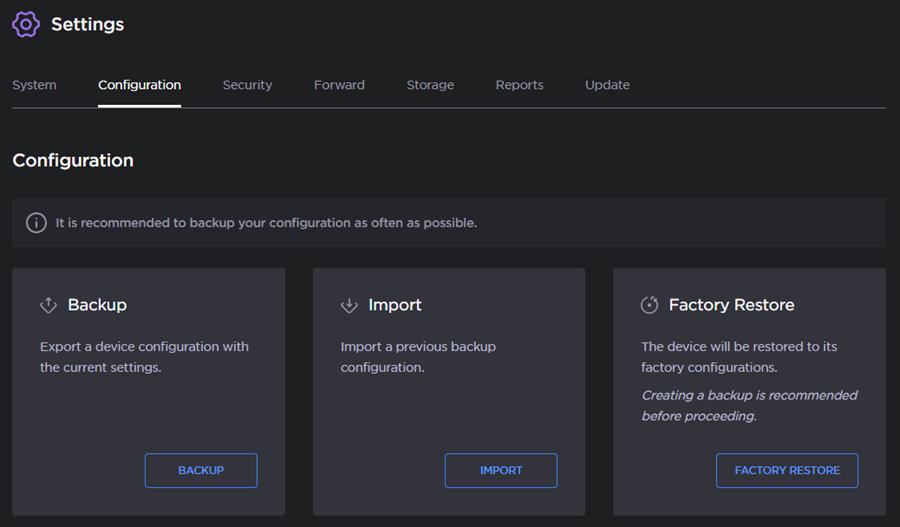

In the sidebar, click Settings.
Click the Configuration tab.
Click the Import button.

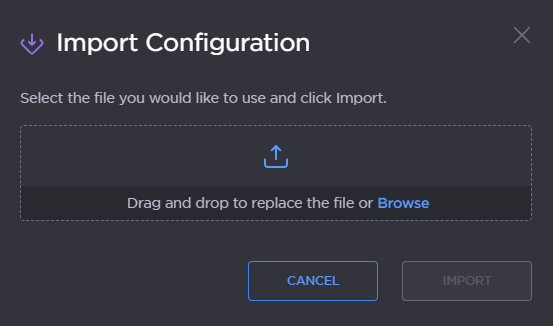

Drag and drop or click Browse to select the .awj file to be imported.
Click the Import button.
USB Flash Drive
The unit supports automatic reconfiguration at startup or after detecting the insertion of a USB flash drive containing specific configuration files in its root directory.
For an overall configuration: the file must be named autoconfig.awj.
For a configuration related to network only: the file must be named networkconfig.awj or networkconfig.conf. If both are present, only networkconfig.conf will be used.
For a Destination Profile auto-configuration: the file must be named destinationconfig.awj.
Note
If autoconfig.awj, networkconfig.xxx, and destinationconfig.awj are present, only autoconfig.awj will be used.
The reconfiguration is rejected when:
the file format is not valid.
the file is not applicable for the product (e.g., Pro4 configuration file applied on Rack400).
the unit is in operation (Live, Forward, Record).
Note
When the unit is reconfigured, the Activity LED blinks blue 3 times.
When reconfiguration is rejected, the Activity LED blinks red 3 times.
