Connecting a Quad CellLink to the Unit

Using a Quad CellLink allows you to enable cellular networks on your device.

To connect a Quad CellLink to the unit:

1. On the Quad CellLink, remove the SIM card cover and insert the SIM cards into the slots according to the labels on the cover.



   Note

   Ensure the SIM cards are unlocked.

2. Replace the SIM card cover.

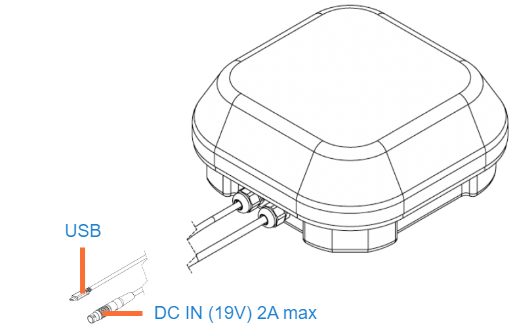

3. Connect the AC/DC adapter and the power cable.

4. Connect the USB cable to the unit.



   Note

   Choose a weather-protected area for this connection to avoid any damage due to ambient humidity or rain.




5. Open the transmitter Web Interface.

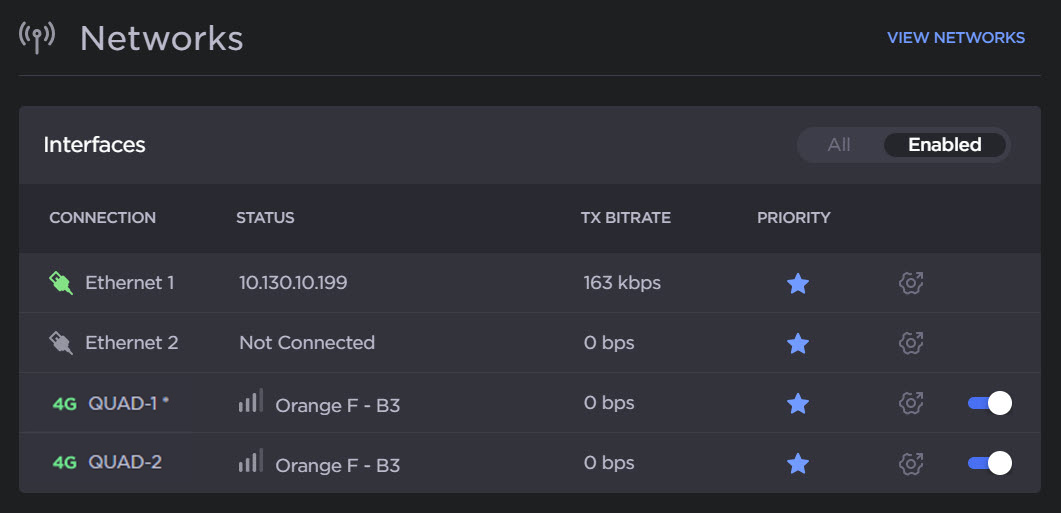

6. The Quad CellLink is automatically detected. From the Dashboard, the Quad CellLink connection appears in the table in the Networks section.





   Note

   The modems are labeled as follows:

   • QUAD-1 means modem #1 from Quad CellLink,
   • QUAD-2 means modem #2 from Quad CellLink, etc.

   You can connect up to two Quad CellLinks to the transmitter.
