Starting a Record

To start a record:

1. From the Home menu, click on . The video preview appears on screen and the selected record profile is displayed.
   When clicking on or , the Record menu displays additional information.



   Selected Record Profile
   Auto-record (OFF/ON) Toggle Switch
   Selected Destination Profile

   • To select another Record profile:

     1. Click on the field.

     2. Click on another Record profile.

   • To modify the Auto-forward mode:

     1. Click on the toggle button.

   • To select another Destination profile:

     1. Click on the field.

     2. Click on another Destination profile.

2. Click on to start the Record. The video preview appears on the screen:



   Audio bars indicating audio levels

   Record duration

3. Click on to display more information about the record action.



   Remaining recording time possible on SD card
   Space used on SD
   Source Standard
   Record Duration
   In case of a Record and simultaneous Forward, another screen appears when you click on the unit panel:



   Network Bitrate
   Record Duration
   Amount and percentage of data already forwarded (if option enabled)

To stop the Record:

1. Click on .

2. Click on > Stop Record.

To stop the Forward:

1. Click on .

2. Click on > Stop Forward.

To start the Record:

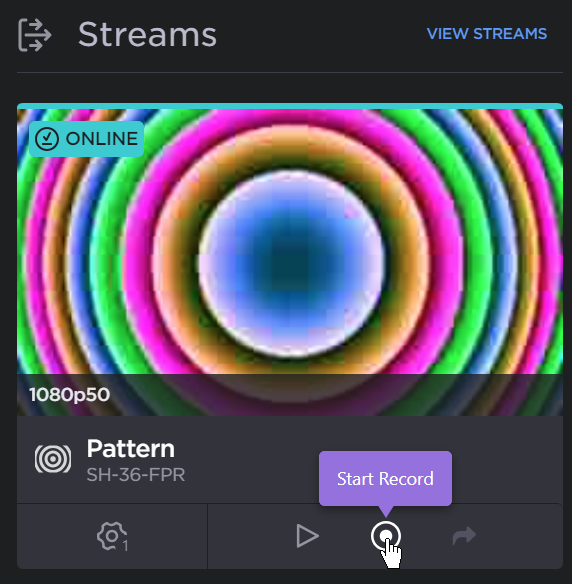

1. On the Dashboard, in the Streams section, click the  icon to check that the unit settings are configured and selected as required:

Note

If you enable the Auto-forward option, the video file is automatically forwarded during the record.

2. Click to start the Record.



To stop the Record:

1. Click > Stop.

To stop the Forward:

1. Click > Stop.

Note

Before starting a record, make sure that the REC button, the Record profile, and the Destination profile have been configured. Please see Configuring the Camera's REC Button and Adding a Record Profile.

• Press the camera's REC button.

The Record is in progress.
