Starting a Live

To start the Live:

1. From the Home menu, tap . The video preview appears on screen and the live profile selected is reminded. When tapping or , the Live menu provides some additional information.



   Selected Live Profile
   Selected Record Profile
   Auto-record is enabled or not (OFF/ON)
   The Selected Destination Profile

   You can modify these settings before starting the Live action.

   • To select another Live profile:

     1. Tap the field.

     2. Tap another Live profile.

   • To select another Record profile:

     1. Tap the field.

     2. Tap another Record profile.

   • To modify the Auto-Record mode:

     1. Tap the toggle button to enable or disabled Auto-Record.

   • To select another Destination profile:

     1. Tap the field.

     2. Tap a different Destination profile.

2. Tap to start the Live. The video preview appears on screen.



   Audio Bars indicating Audio Levels

   Record Indicator

   Live Indicator

   Live Duration

3. Tap to display information about the Live action.



   Network Bitrate
   End-to-End Latency configured in the Live Profile or modified remotely from StreamHub interface
   Source Standard
   Live Duration

Note

Refer to the StreamHub User Guide to set another delay during Live operation.

In case of a Live and simultaneous Record, a different screen appears:

Remaining recording time possible on SD card

Space used on SD card

To stop the Live:

1. Tap .

2. Tap > Stop Live.

To stop the Record:

1. Tap .

2. Tap > Stop Record.

To start the Live:

1. On the Dashboard, in the Streams section, click the icon to check that the unit settings are configured and selected as required.

Note

If you enable the Auto-Record option, the video file is automatically recorded during the live.

2. Click the Save button.

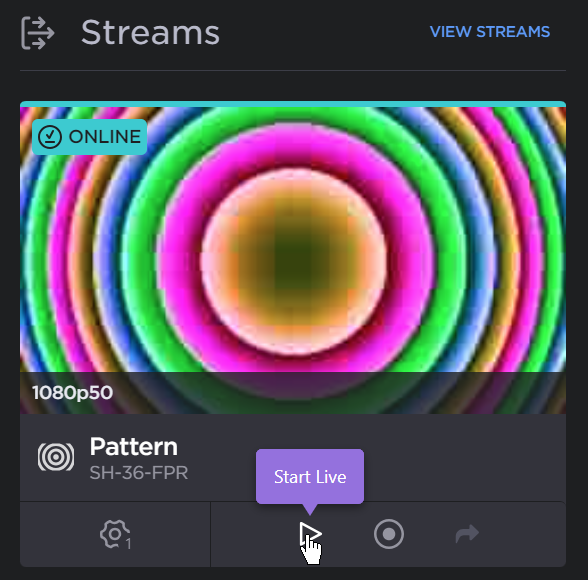

3. Click the icon to start the Live.



To stop the Live:

1. Click the icon.

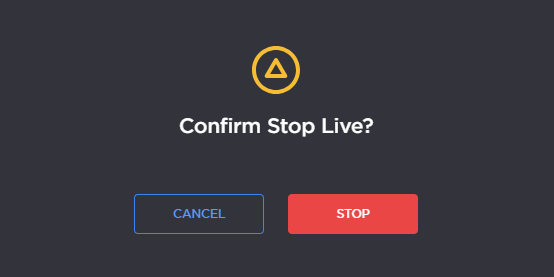

2. Click the Stop button to confirm stopping the video transmission.



Note

Before starting a live, make sure that the REC button, the Live profile, and the Destination profile have been configured. Please see Configuring the Camera's REC Button and Configuring Live Profiles.

• Press the camera's REC button.

The Live is in progress.
