Testing a Live using the Pattern Mode

After setting a Destination Profile, you can configure a Live encoding using a Pattern and test communication between the unit and the destination StreamHub.

1. Tap to access the unit's settings.

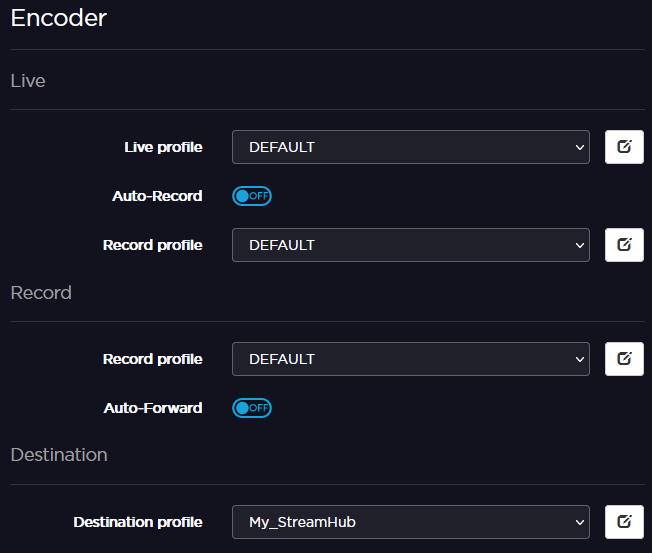

2. Select a destination profile.



3. From the Web Interface, click on Settings > I/O.

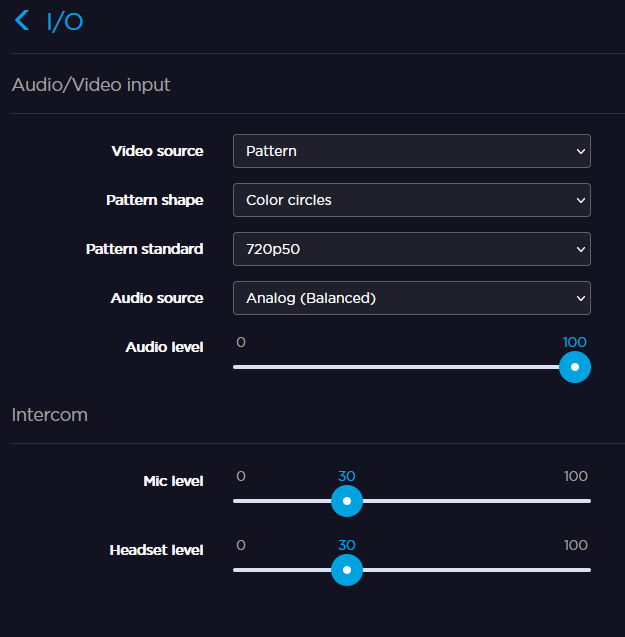

4. From the scrolling list, select Pattern as a Video Source and the expected video standard.



5. Select the Pattern Shape between:

   • Color circles pattern

   • Color bars pattern

   • Black pattern

6. Select the Pattern Standard.

7. Click to start a Live. A graph appears on the unit's Web Interface.
