Starting / Stopping a Live (MultiMode)

To start a live:

1. From the Home menu, tap



   . The video preview appears on screen and the live profile selected is displayed. When tapping



   or



   , the Live menu displays additional information for each encoder.





   Enable Encoder




   Selected Source




   Selected Live Profile




   Selected Destination Profile


   Note

   • Video source must be all SDI or all Pattern.
   • All inputs must have the same resolution and the same frame rate.

   You can modify settings before starting the Live action:

   • To select another Source:
     1. Tap the



        field.
     2. Tap another source.
   • To select another Live profile:

     1. Tap the



         field.
     2. Tap another Live profile.
   • To select another Destination profile:

     1. Tap the



        field.
     2. Tap another Destination profile.
2. Tap



   to start the Live for all encoders. Video previews appear on screen.

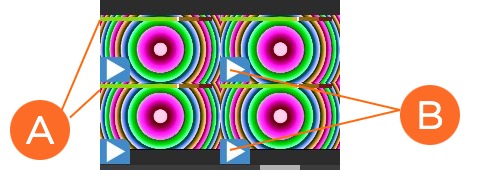

   Audio bars indicating audio levels




   Live icon blinking means that a live is running
3. Tap an encoder to display more information.

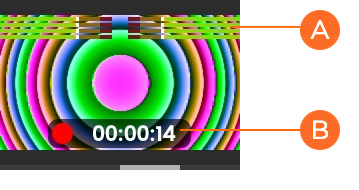

   Audio bars indicating audio levels




   Live duration

4. Tap

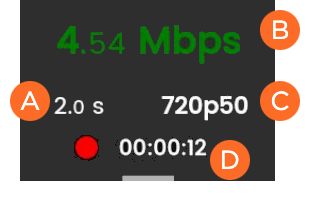

   to display some indications about the Live action:





   End-to-end Latency configured in the Live Profile or modified remotely from StreamHub interface




   Network bitrate




   Source standard




   Live duration


   Note

   See the StreamHub User Guide to set another delay during Live operation.

To stop the Live for all encoders:

1. Tap



   .
2. Tap



   .
3. Tap



   to confirm.

To stop the Live for a single encoder:

1. Tap the preview of the encoder that you want to stop.
2. Tap



   .
3. Tap



   .
4. Tap



   to confirm.

To start a live:

1. Click



   .

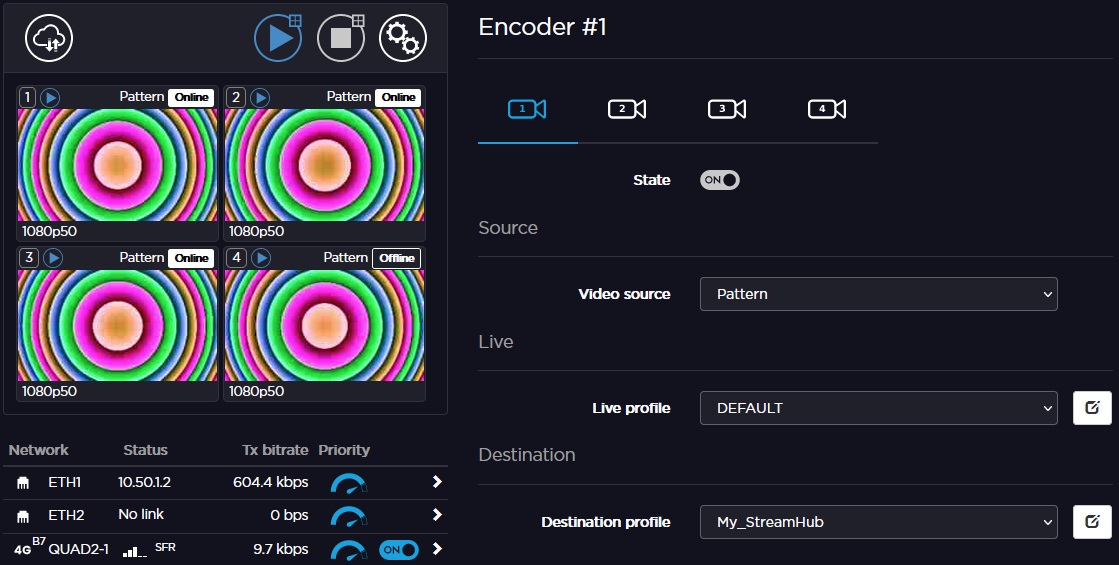

2. For each encoder, check that the settings are configured and selected as required:
   • Video Source
   • Live Profile

   • Destination Profile









     Note

     1. Video Source must be all SDI or all Pattern.
     2. All inputs must have the same resolution and the same frame rate.
3. Click



   to start the Live for all encoders.

To stop the Live:

1. Click



   . A



   popup appears.
2. Click



   or the



   icon to stop the video transmission.

Note

Before starting a live, make sure that the REC button, the Live profile, and the Destination profile have been configured. Please see Configuring the Camera's REC Button and Configuring Live Profiles.

To start a live:

• Press the camera's REC button.

The Live is in progress.
