Interfaces

Audio/Video

12G-SDI Input	Connector type: BNC connector Impedance: 75Ω Complies with SMPTE 292M, SMPTE424M, SMPTE2081, and SMPTE2082 level A and level B-DS (limited to one SDI stream for level B-DS) Supported Embedded Audio at 48kHz
3G-SDI Input 3G-SDI Output (reserved for future use)	Connector type: BNC connector Impedance: 75Ω Complies with SMPTE 292M and SMPTE 424M level A and level B-DS (limited to one SDI stream for level B-DS) Supported Embedded Audio at 48kHz
HDMI Output	Connector type: Type A Complies with HDMI 1.4 Fully shielded HDMI cable is mandatory
SYNC Input (reserved for future use)	Connector type: BNC connector Impedance: 75Ω Complies with Black Burst and Tri-level-sync analog signals Complies with SMPTE 240M, SMPTE 274M, SMPTE 296M, SMPTE RP211

Return IFB Channels

Intercom Headset

Connector type: 4pins (TRRS) 3.5 mm Audio Jack
(Signal complies with Apple and Samsung headsets)

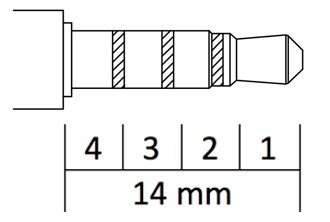

Pins (Mating plugs)
1. Tip (Left HP)
2. Ring1 (Right HP)
3. Ring2 (Ground)
4. Sleeve (Microphone)

Headphone Dynamic Range (20-kHz Filter): 100 dB
Headphone THD+N: -70 dB max
Headphone Load Impedance: 16Ω or higher
Headphone Output Power: 2 x 55mW max (16Ω)
Headphone Full Scale output voltage: 0.65V_RMS
Microphone Bias : 2.5V
Microphone Maximum Level : 0.5V_RMS

LAN/WAN

Ethernet	Two Ethernet ports 10/100/1000 Base-T RJ45 connector Green LED indicates link Orange LED indicated speed (on: 1000BT, off: 10/100BT)

Storage

SD Card	Micro SD slot, class 10 recommended (FAT32, exFAT)
USB	Two USB 3.0 Type A connectors One USB 3.0 Type C connector

Power

Dual DC Input	Input type: Lock Jack 5.5mm ⌀ Automatic under-voltage protection at 12.5 Volts Automatic over-voltage protection at 22 Volts
AC/DC Adapter	Manufacturer: EDAC POWER ELEC. Model: EA10951E-180 DC Output: 18V / 5A max AC Input: 100-240V-2.5A, 50-60Hz
