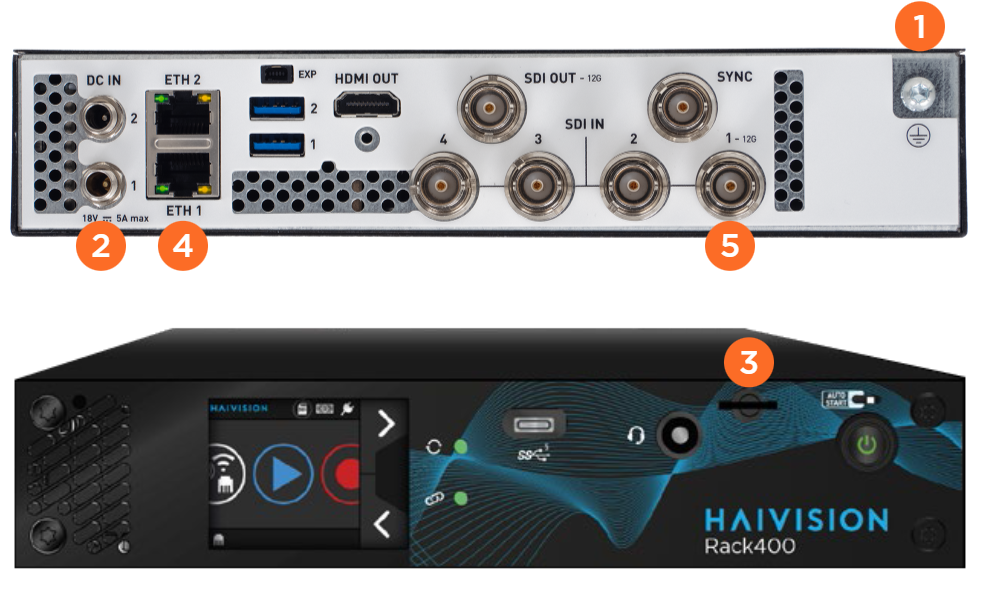

Installing the Unit

  1. Connect the Protective ground terminal.

    Caution

    The Protective ground terminal must be connected to the RACK ground pin. This pin must be connected to the safety ground.

  2. Connect the AC/DC adapter and the power cable.

  3. Insert a microSD card (if not already installed).

    Note

    It is recommended to use FAT 32 or exFAT formats and class 10 microSD card.

  4. For Ethernet transmission, connect the Ethernet cable to Ethernet (ETH) 1.

    Note

    DHCP is the default operating mode for Ethernet 1.

  5. Connect the video input cable to SDI 1.
