Configuring a Video Return Live Profile

To configure a video return Live Profile from the Unit Panel, or from the Web Interface, see the sections below.

Unit Panel

  1. From the Home menu, tap _avi_Unit_Settings.png > _avi_Unit_Play_Settings.png > _avi_Unit_Add.png .

  2. Tap the Profile Name field and enter the new profile name.

  3. Tap _avi_Unit_Checkmark.png to confirm the new profile name.

  4. Tap the Application field and choose Video Return.

  5. Tap the End-to-End Latency field to adjust the latency.

  6. Tap the Bitrate field to enter a new bitrate.

  7. In the Audio settings, tap the Channel Layout field and choose between:

    • 1x Mono

    • 1x Stereo

  8. Tap _avi_Unit_Arrow_Down.png and select ADVANCED +.

  9. Tap _avi_Unit_Slider_Off.png to enable Optimization for LiveGuest.

  10. Tap _avi_Unit_Slider_Off.png to enable Manual Resolution.

  11. Tap the Resolution field to display the resolution list.

  12. Select the resolution you want to apply.

  13. Tap _avi_Unit_Save.png to save the new Video Return Live Profile settings.

Note

When configured in multi-encoding mode, up to two interlaced video sources can be encoded.

Web Interface

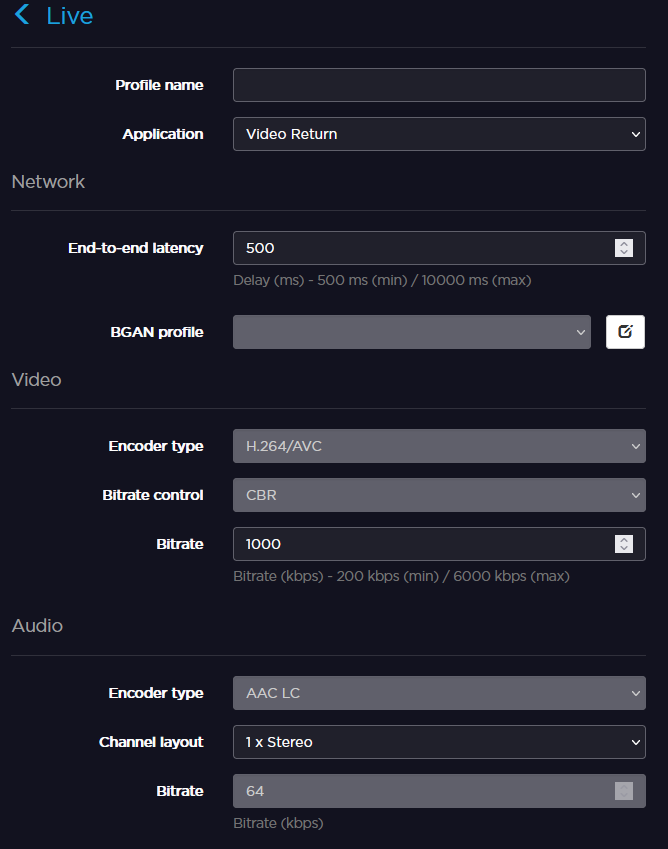

  1. Click on Settings > Live.

  2. Click on _avi_Add_Button.png .

  3. Enter a profile name in the Profile Name field.

  4. Set the Application to Video Return.

  5. In the Network settings, enter an End-to-End Latency.

  6. In the Video settings, set a bitrate.

  7. In the Audio settings, select a Channel Layout between:

    • 1x Mono

    • 1x Stereo

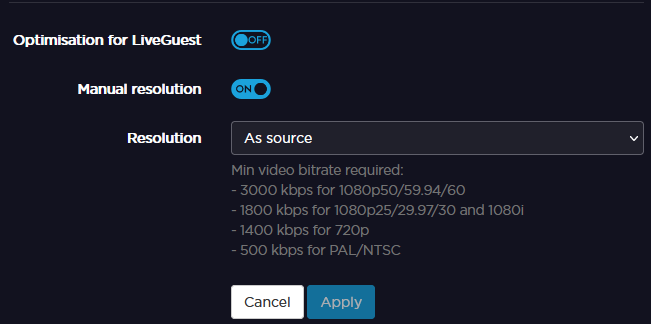

  8. Click on Advanced.

  9. Click on _avi_Slider_Off.png to enable Optimization for LiveGuest.

  10. Click on _avi_Slider_Off.png to enable Manual Resolution.

  11. Click on the Resolution field to select the resolution to apply.

Note

When configured in multi-encoding mode, up to two interlaced video sources can be encoded.


  1. Click Apply.
