Interfaces

Audio/Video

12G-SDI Input

Connector type: BNC connector
Impedance: 75Ω
Complies with SMPTE 292M, SMPTE424M, SMPTE2081, and SMPTE2082 level A and level B-DS (limited to one SDI stream for level B-DS)
Supported Embedded Audio at 48kHz

3G-SDI Input
3G-SDI Output
(reserved for future use)

Connector type: BNC connector
Impedance: 75Ω
Complies with SMPTE 292M and SMPTE 424M level A and level B-DS (limited to one SDI stream for level B-DS)
Supported Embedded Audio at 48kHz

HDMI Output

Connector type: Type A
Complies with HDMI 1.4
Fully shielded HDMI cable is mandatory

SYNC Input

Connector type: BNC connector
Impedance: 75Ω
Complies with Black Burst and Tri-level-sync analog signals
Complies with SMPTE 240M, SMPTE 274M, SMPTE 296M, SMPTE RP211

Return IFB Channels

Intercom Headset

Connector type: 4pins (TRRS) 3.5 mm Audio Jack
(Signal complies with Apple and Samsung headsets)

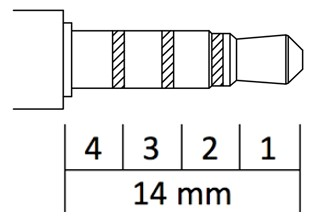

Pins (Mating plugs)
1. Tip (Left HP)
2. Ring1 (Right HP)
3. Ring2 (Ground)
4. Sleeve (Microphone)


Headphone Dynamic Range (20-kHz Filter): 100 dB
Headphone THD+N: -70 dB max
Headphone Load Impedance: 16Ω or higher
Headphone Output Power: 2 x 55mW max (16Ω)
Headphone Full Scale output voltage: 0.65VRMS
Microphone Bias : 2.5V
Microphone Maximum Level : 0.5VRMS

LAN/WAN

Ethernet

Two Ethernet ports
10/100/1000 Base-T
RJ45 connector
Green LED indicates link
Orange LED indicated speed (on: 1000BT, off: 10/100BT)

Wi-Fi

Dual-band 2.4GHz and 5GHz
802.11 b/g/n/ac

Storage

SD CardMicro SD slot, class 10 recommended (FAT32, exFAT)
USBTwo USB 3.0 Type A connectors
One USB 3.0 Type C connector

Power

Dual DC InputInput type: Lock Jack 5.5mm ⌀
Automatic under-voltage protection at 12.5 Volts
Automatic over-voltage protection at 22 Volts
AC/DC AdapterManufacturer: EDAC POWER ELEC.
Model: EA10951E-180
DC Output: 18V / 5A max
AC Input: 100-240V-2.5A, 50-60Hz
