Setting a Multi-View

The Multi-View feature allows you to monitor any combination of inputs received by StreamHub on a single screen. You can use it to monitor up to 16 videos sources, with optional audio meters added on all videos.

The Multi-View can then be used as any other input, being sent directly to an SDI or NDI output. It can also be encoded in H.264 or HEVC before being sent to any available IP output.

1. Scroll down the INPUTS section to display the multi-view thumbnail.
2. Click on



   , then on



   .
3. Define a name for the multi-view.

4. Fill in the fields and configure settings as required, including the video output standard and audio channel layout.



   Note

   You can click



    to get more information about settings required.
5. Click on Save.
6. Click on



   to enable this multi-view.
7. Click on



   to configure the multi-view.

8. Set the number of rows and columns you wish.



   Note

   • You can hide overlay information by ticking the Basic option. Overlay information includes audio bars and input names.
   • You can click



     or



     to enable or disable the audio (only one input audio can be enabled for the whole mosaic).

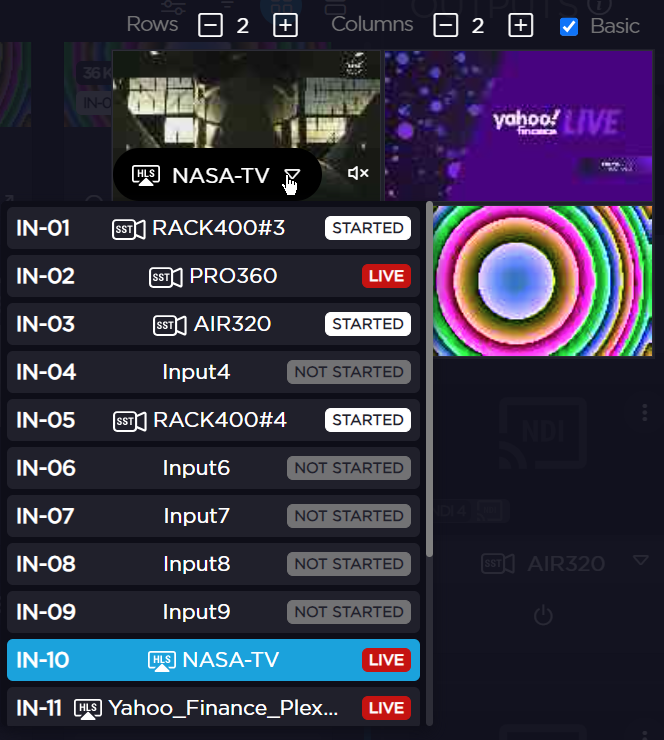

9. For each block in the mosaic, define the input that is assigned to it.






   Note

   The audio stream from only one input can be transmitted with the mosaic. This audio can be selected using the speaker button



   .
