Configuring Video Cards

You can configure as many physical output layouts (SDI and HDMI) as the StreamHub server has on its video cards, and according to the number of physical outputs that the license allows.

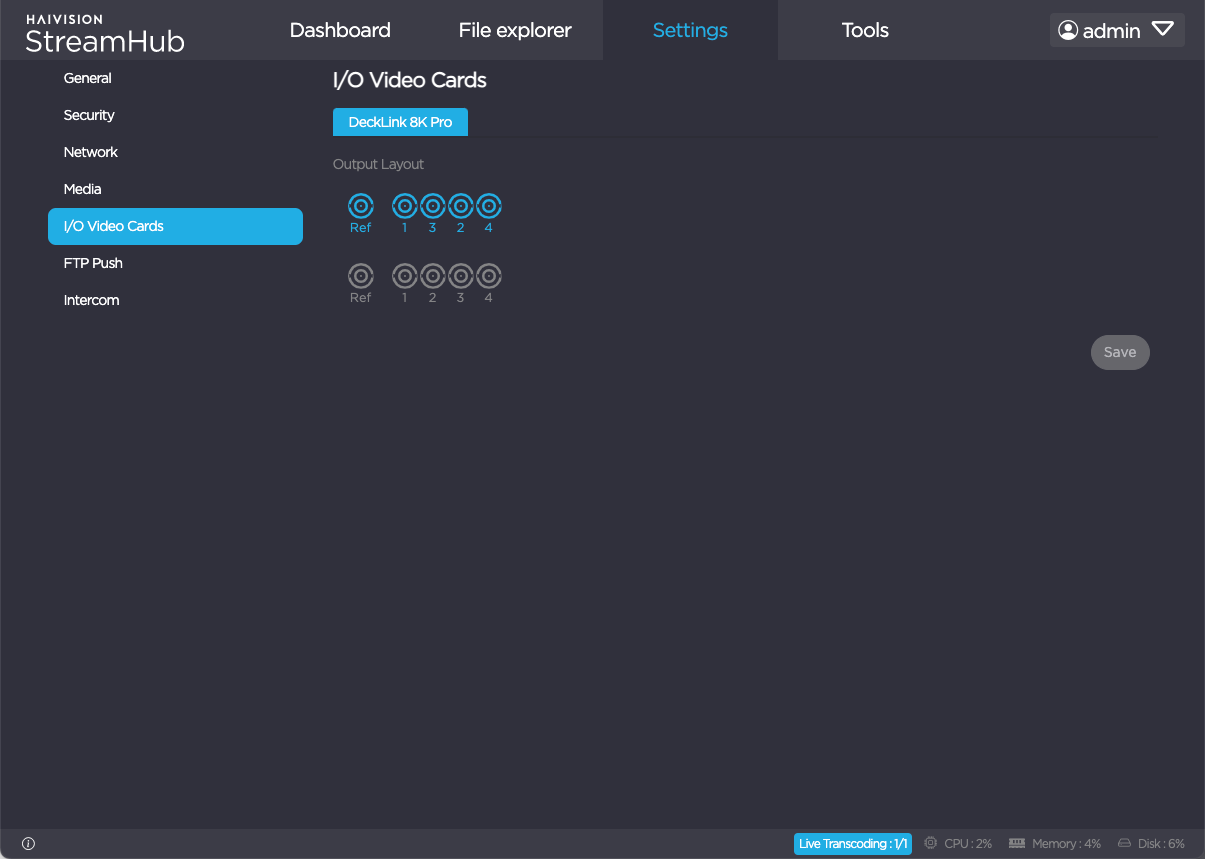

To configure the physical outputs on the video cards:

1. In the menu bar, click on the Settings tab.
2. In the sidebar, click on I/O Video Cards.
3. Select an Output Layout.




4. Click Save.
5. Restart the server for the changes to take effect.
